Evan Mah

Mechanical engineering student at Northeastern, class of 2029. I take hardware from CAD to printed and CNC-routed parts and debug it on the bench. For the firmware and apps around it, I write the specs and test on the device, and AI coding agents write the code.

Looking for a Summer 2027 internship or a Fall 2027 co-op (July–December) in hardware, motorsports or product engineering. Based in Boston, MA.

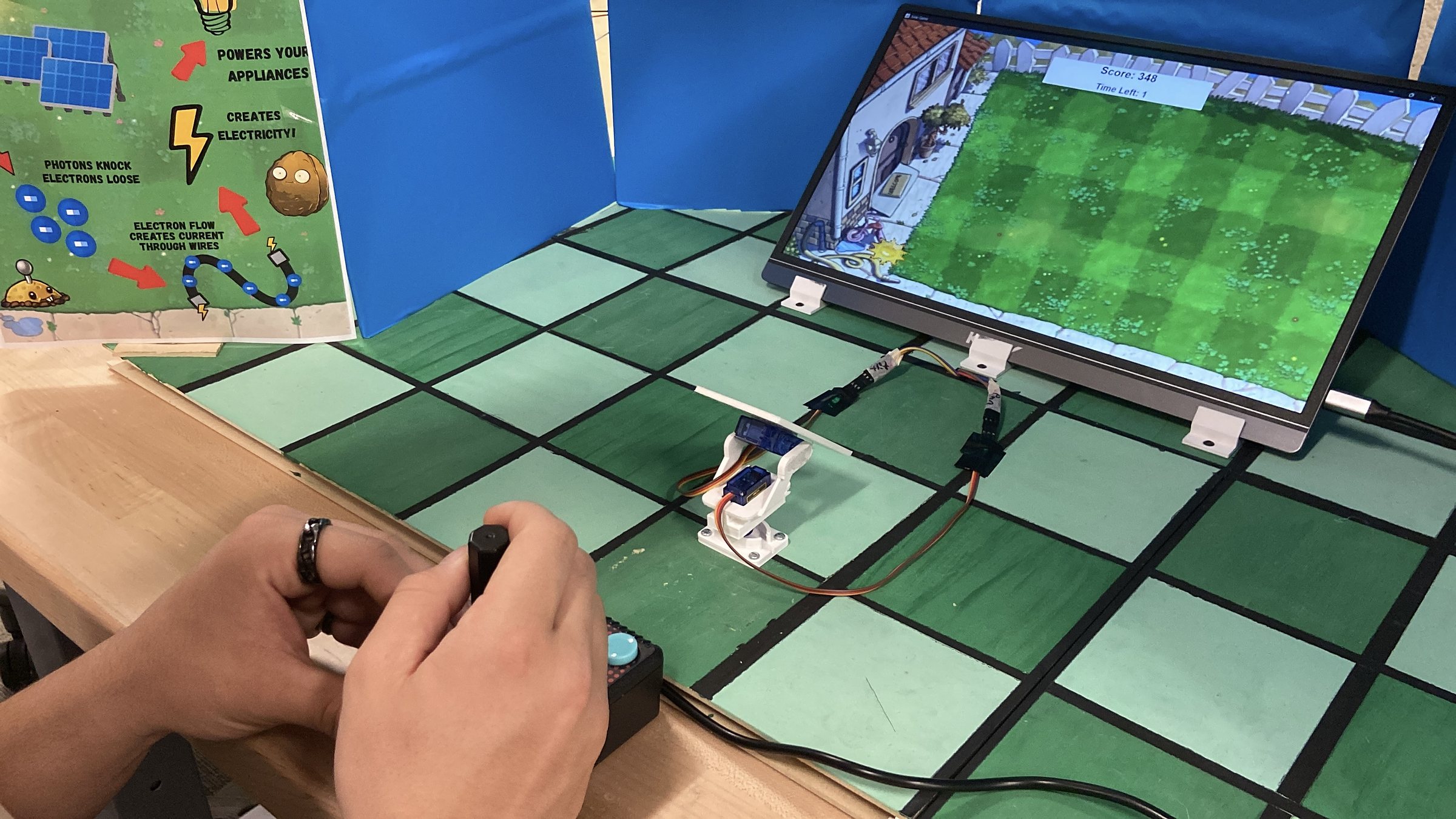

A player aims the 3D-printed sunflower panel with the arcade joystick on the finished Solar Tracker Arcade exhibit
Solar Tracker Arcade, the exhibit my team built for Cornerstone of Engineering: steer a solar panel to follow a moving LED sun. I took over the MATLAB game code, wrote the servo code, and tuned the LED crosshair and hit tolerances.

Formula SAE: carbon-fiber mold tooling

Northeastern Electric Racing · Aerodynamics subteam, mold tooling · Spring 2026 – present

I make the carbon-fiber molds for the car's body panels and wings: from the CAD model, through CAM and the CNC router, to a mold surface ready for infusion.

  • Generate CAM toolpaths in Fusion 360 and check and fix the G-code before each CNC router cut
  • Model aerodynamic molds for body panels and wings in SolidWorks
  • Machine, assemble and surface-prep multi-piece molds for carbon-fiber vacuum infusion, 5+ so far from digital model to finished mold
  • Cut metal tabs for the car on the waterjet
  • SolidWorks
  • Fusion 360 CAM
  • CNC routing
  • Waterjet cutting
  • Composite tooling
  • Design for manufacturing
Northeastern CNC router cutting a Northeastern Electric Racing part: spindle with a brush dust skirt cutting a curved pocket into an MDF sheet, with a dust-collection hose overhead
A Northeastern CNC router mid-cut on an NER part, in MDF. Phone photo from 13 Feb 2026, the afternoon I saved the router program in the toolpath plot.
Top-down plot of a CNC router toolpath for a U-shaped part about 24 by 36 inches, colored by cut depth
Toolpath plot (not a photo of a mold) from one of my Fusion 360 router programs (Feb 2026): a part about 24 × 36 in, drilled and pocketed with a 1/4 in flat end mill, then 3D-finished with a 1/4 in ball end mill. Color shows cut depth, down to 0.77 in.

Projects

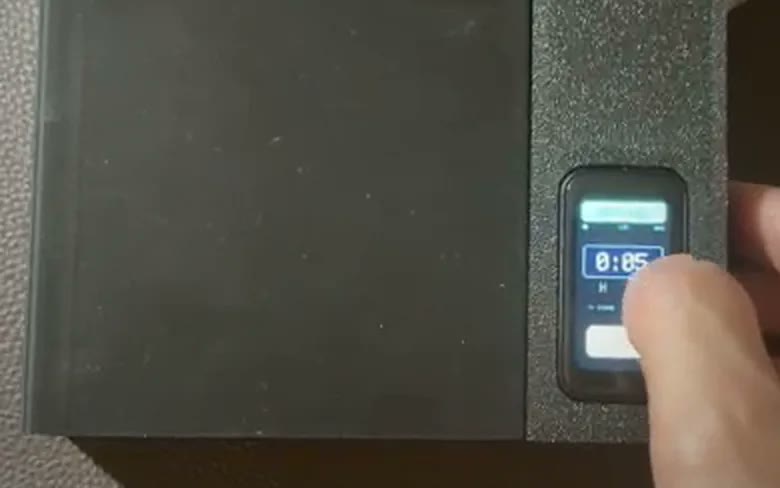

Black 3D-printed Phone Box standing on a desk, lid open, with a small touchscreen in the side housing showing a timer

Phone Box

Jun 2026 – Present · Solo personal project

A 3D-printed phone lockbox with a servo latch, a touchscreen countdown and a tunable emergency override, paired over Bluetooth to an iOS app. Prototype working; still in development.

Enclosure revisions
2
Printed fit-test coupons
5
Prototype parts cost, before the fuel gauge
$44
Read the project

Solar Tracker Arcade

Feb – Apr 2026 · 5 students, Cornerstone of Engineering (Project 2)

A Plants vs. Zombies arcade exhibit for upper-elementary kids that teaches why solar panels tilt. A joystick aims a servo-mounted sunflower at a lit LED sun on a 91 cm MDF dome.

Pan / tilt hit tolerance
3.5° / 4.5°
Dome span
91 cm
Addressable LEDs
440
Read the project

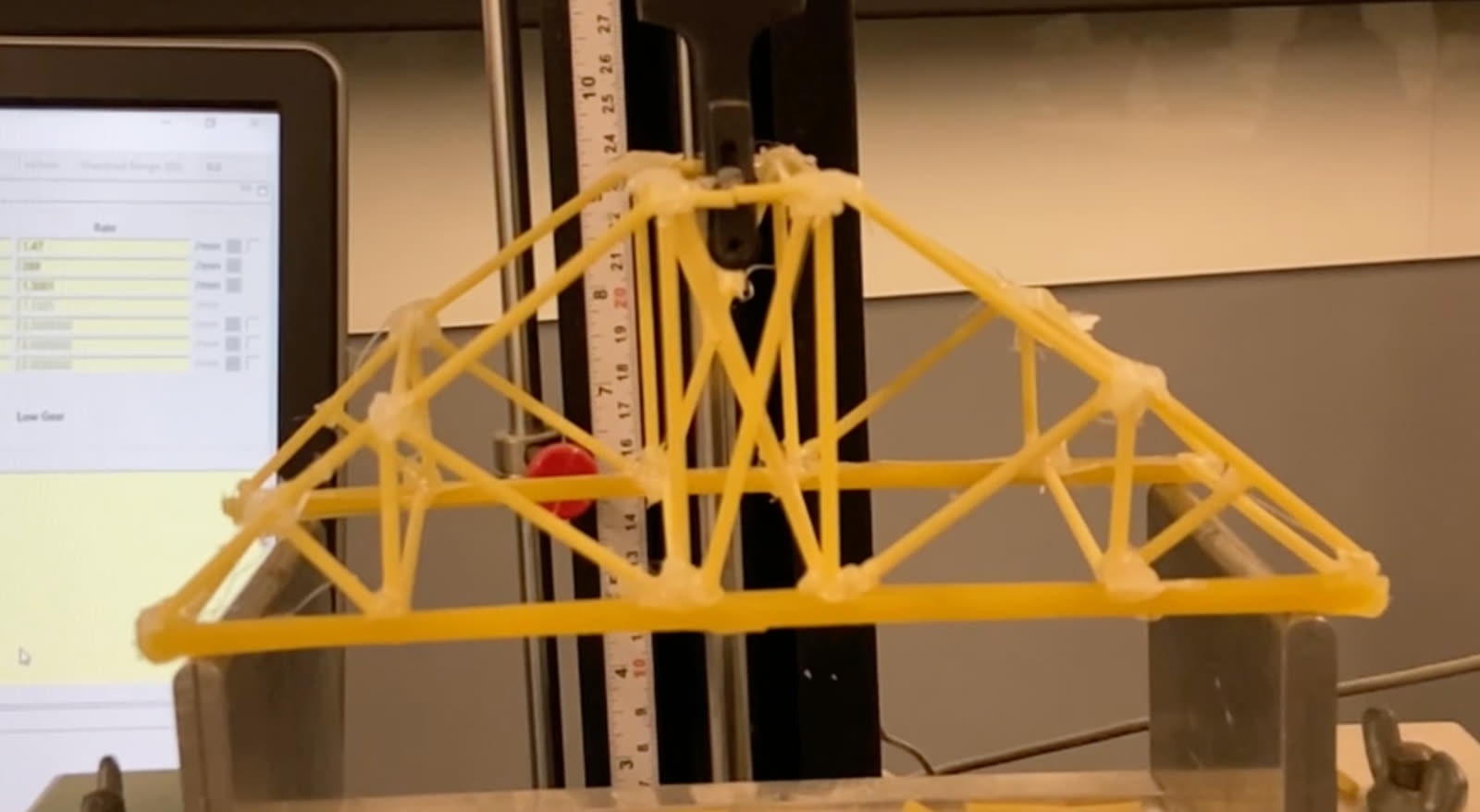

The team's final pasta truss bridge in the load-testing machine

Pasta Truss Bridge

Jan – Feb 2026 · 5 students, Cornerstone of Engineering (Project 1)

A pasta truss bridge for a LEGO astronaut crossing a 20 cm Mars crevasse. I designed, drew and tested my own Waddell A truss, then helped merge five test bridges into a team design that held about 288 times its own weight, 52% more than our best first bridge and second in the class. It was then disqualified for being too low for the astronaut.

Team design, load / weight
~288
Team design vs. the best round-1 bridge (188.9)
+52%
My round-1 bridge, load / weight
66.9
Read the project

CAD coursework

Laser-cut LCD enclosure

Cornerstone of Engineering, AutoCAD lab 4 · Feb 2026

A desk-clock style enclosure for the course's Pico LCD kit, drawn in AutoCAD and laser-cut from MDF. I measured the board at 3.0 mm with calipers and sized every finger joint to it (0.1181 in). One panel is taller so the screen tilts up toward the user, internal brackets hold the PCB, and side and back cutouts reach the LCD pins and power light. Everything is glued except the front panel, which is a friction fit so the LCD can come out. It assembled on the first cut.

Finished laser-cut MDF enclosure with finger joints, a sun-ray engraving on top and a blue LCD in the tilted front panel
The finished box
AutoCAD flat pattern of every enclosure panel with finger joints and dimensions in inches, title block LCD Enclosure, Evan Mah, 2/07/26
My dimensioned flat pattern for the laser cutter

Two-part stamp holder

Cornerstone of Engineering, SolidWorks lab 4 · Mar 2026

A lawnmower-shaped stamp handle for the Solar Tracker exhibit, modeled in SolidWorks with lofted, swept and draft features and sized to print in about five hours. I split it into a body and a slot-in handle so it needs less support material. Real lawnmower wheels sit below the body, but a stamp needs a flat bottom, so I modeled the wheels full size and cut them flush.

SolidWorks assembly drawing with an exploded view of the lawnmower body and handle and a two-item parts list
Assembly drawing with exploded view and parts list
Dimensioned isometric drawing of the stamp holder showing fillet radii and handle dimensions
Dimensioned isometric

Flywheel assembly

Cornerstone of Engineering, SolidWorks lab 2 · Mar 2026

A six-part flywheel assembly in SolidWorks: bracket, bushing, axle, wheel, collar and set screw, with mates, an exploded view and a drawing sheet with a bill of materials.

SolidWorks exploded view of a flywheel on an axle with a bracket, bushing, collar and set screw
Exploded view
SolidWorks drawing sheet of the flywheel assembly with top, front, right and isometric views and a six-item parts list
Drawing sheet with parts list

Software side projects

Experience

  • Northeastern Electric RacingSpring 2026 – Present
    Aerodynamics subteam · Boston, MA

    Model, CAM-program, machine and surface-prep carbon-fiber molds (SolidWorks, Fusion 360, CNC router).

  • Buddhist Tzu Chi FoundationJun 2024 – Jun 2025
    Volunteer · Oakland, CA

    Volunteer at community outreach events.

Education

  • Northeastern University2025 – 2029
    B.S. Mechanical Engineering · GPA 3.841

    Relevant coursework: Mechanics of Materials (with lab), Statics, Thermodynamics, Materials Science (with lab), Cornerstone of Engineering I and II, Physics 2 (with lab), Differential Equations and Linear Algebra, Calculus 3

Skills

Design
SolidWorks · AutoCAD · Fusion 360 · Design for manufacturing
Build
CNC routing · FDM printing · Laser cutting · Composite molds · Soldering
Embedded
Raspberry Pi Pico · ESP32 wiring and bench debugging · I2C, PWM, serial
Code
Python (Cornerstone labs) · MATLAB · MicroPython (Solar Tracker servo code)
AI-directed
CircuitPython firmware · React Native iOS app · Electron desktop app

Get in touch

Email is the fastest way to reach me. The PDF portfolio gives each hardware project a one-page summary.
